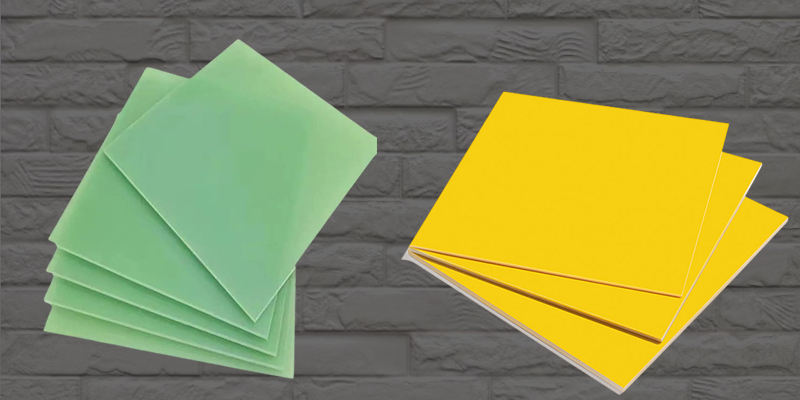

Glass Epoxy Sheet (G10 / FR4 / FRP)
Glass epoxy sheets are high-strength laminated sheets manufactured from woven fiberglass cloth bonded with epoxy resin. Commonly known as G10 or FR4, these sheets provide excellent electrical insulation, superior mechanical strength, and outstanding thermal stability. Glass epoxy sheets are widely used in electrical, electronic, and industrial applications where reliability, dimensional stability, and flame resistance are critical.
| Parameter | Details |
|---|---|
| Product Name | Glass Epoxy Sheet |
| Colour | Green |
| Grade | G10 / FR4 / FRP |
| Thickness Range | 0.5 mm to 100 mm |
| Standard Sheet Size | 1000 × 2000 mm / Custom |
| Density | 1.85 – 2.00 g/cm³ |
| Operating Temperature | -40°C to +180°C |
| Key Properties | Electrical insulation, flame retardant, high strength |
| Electrical Properties | Excellent dielectric & arc resistance |
| Applications | Electrical panels, PCB backing, Switchgear parts, Transformer insulation, Industrial structural components |
