Glass Epoxy Rod G10 FR4

Glass Epoxy Rod (G10 / FR4)

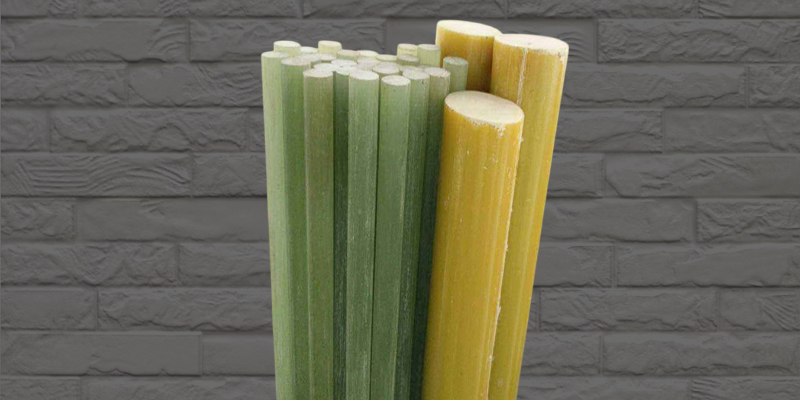

Glass epoxy rods are high-strength laminated rods manufactured from woven fiberglass reinforced with epoxy resin. Commonly known as G10 or FR4, these rods offer excellent electrical insulation, superior mechanical strength, and high thermal resistance. Glass epoxy rods are widely used in electrical, electronic, and industrial applications where reliability, dimensional stability, and flame resistance are essential.

  • Excellent electrical insulation
  • High mechanical strength
  • Flame retardant (FR4 grade)
  • Low moisture absorption
  • Excellent dimensional stability
  • Easy to machine
  • High heat resistance
  • Excellent dielectric strength
  • Chemical & moisture resistant
  • Rigid & durable structure
  • Long service life
  • Custom cut lengths available
Parameter Details
Product Name Glass Epoxy Rod
Colour Green
Grade G10 / FR4
Diameter Range 6 mm to 200 mm
Standard Length 1000 mm / 300 mm
Density 1.85 – 2.00 g/cm³
Operating Temperature -40°C to +180°C
Key Properties Electrical insulation, flame retardant, high strength
Electrical Properties Excellent dielectric & arc resistance
Applications Electrical insulation components, PCB spacers, Bushes, Switchgear parts, Transformer & industrial components
