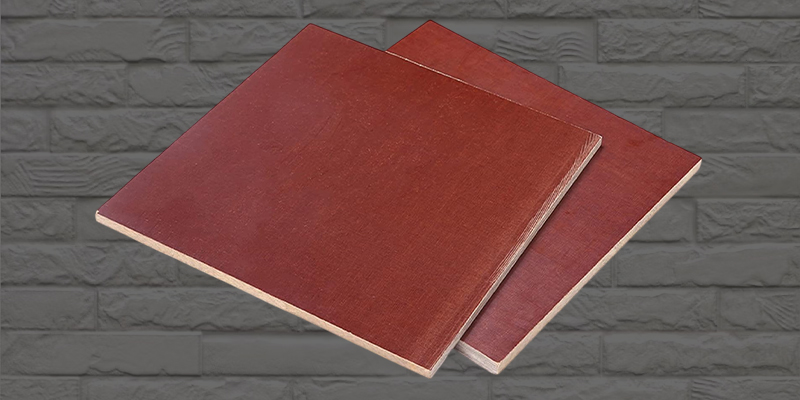

Bakelite Sheet – Paper Base , Fabric Base
Bakelite sheets are high-strength laminated sheets manufactured from phenolic resin and reinforced paper fabric. Brown bakelite sheets are widely used in electrical, mechanical, and industrial applications due to their excellent electrical insulation, high mechanical strength, and thermal resistance. These sheets offer stable performance under high temperature and load conditions while providing long service life and easy machinability.
| Parameter | Details |
|---|---|
| Product Name | Bakelite Sheet |
| Colour | Brown |
| Material | Phenolic Resin Laminated Sheet |
| Thickness Range | 3 mm to 100 mm |
| Standard Sheet Size | 1000 × 2000 mm / Custom |
| Density | 1.30 – 1.40 g/cm³ |
| Operating Temperature | -40°C to +160°C |
| Key Properties | Electrical insulation, heat resistant, high strength |
| Electrical Properties | Excellent dielectric strength |
| Applications | Electrical panels, Insulation boards, Switch gears, Transformer parts, Mechanical & structural components |
